MuleSoft Anypoint Code Builder: An introduction

In today’s fast-changing digital landscape, integration tools across the industry are rapidly transitioning to cloud-based solutions. To stay ahead in this shift, MuleSoft is embracing this evolution with its powerful new offering, Anypoint Code Builder: a next-generation, cloud-based development environment designed to empower developers to build APIs and integrations quickly.

Anypoint Code Builder is currently in its Beta release, giving developers an early opportunity to experience the future of MuleSoft development.

Anypoint Code Builder is based on Visual Studio Code, it integrates Visual Studio Code flexibility with the advanced capabilities of MuleSoft’s Anypoint Platform, including API management, Exchange and Runtime Manager. It offers a simple and efficient way to create, test, and deploy Mule applications right from your browser. Whether you’re building an API from scratch or modifying a flow, Anypoint Code Builder streamlines the process, making integration development faster and easier.

From Studio to the Cloud: Anypoint Code Builder

Both Anypoint Studio and Anypoint Code Builder offer similar core features for building, testing, and deploying Mule applications. Both tools support direct integration with Anypoint Platform, allow for seamless deployments to CloudHub, and offer debugging and testing capabilities.

However, Anypoint Code Builder introduces a more lightweight, browser-based approach, allowing for easier collaboration and access from anywhere. This cloud-first approach makes it a flexible solution for developers, especially for those who need to work remotely or prefer not to deal with local installations.

Key Features of MuleSoft Anypoint Code Builder

1. Seamless Anypoint Platform Integration

• Connect directly to Anypoint Exchange to import or share APIs and reusable assets.
• Deploy projects directly to CloudHub or other environments.

Note: The code base in Anypoint Code Builder is stored either in your local machine or in the Anypoint Platform. This enables easy collaboration, version control, and reusability across teams.

2. Simplified API Design

• Create APIs using RAML or OpenAPI specifications.
• Design and Implement integration flows.

3. Integrated Testing

• Test your APIs and integrations directly within the tool.
• No switching between environments – debug and troubleshoot in one place.

Note: Although MUnit is not fully integrated in the interface yet, Anypoint Code Builder can connect to MUnit. You can write and run tests manually, especially when using the desktop version through Visual Studio Code.

4. Cloud-Based Development

• Start coding immediately without local setup.
• Optionally, use a local instance for offline work.

5. Collaboration Features

• Manage version control with Git integration.
• Share reusable assets and API specifications via Anypoint Exchange.

Why Use Anypoint Code Builder?

1. All-in-One Development: Manage the entire API or integration lifecycle from design to deployment within one tool.
2. Cloud-Native Advantage: No installation required, just open your browser and start coding. Perfect for remote and distributed teams.
3. Consistency with Studio: Offers a familiar experience for developers who have used Anypoint Studio, making it easier to adopt.

Note: Mule applications built using Anypoint Code Builder are fully compatible with Anypoint Studio, as they follow the standard Mule Maven project structure.

Challenges:

• Limited UI Support for Components: All components can be written and configured in Anypoint Code Builder, the drag-and-drop functionality for designing and managing flows is limited compared to Anypoint Studio.
• Requires Internet (for Cloud IDE): The browser-based version needs a stable internet connection.
• Limited Connector: A few connectors and features available in Anypoint Studio may not yet be supported.

Key highlights – Working with Code Builder

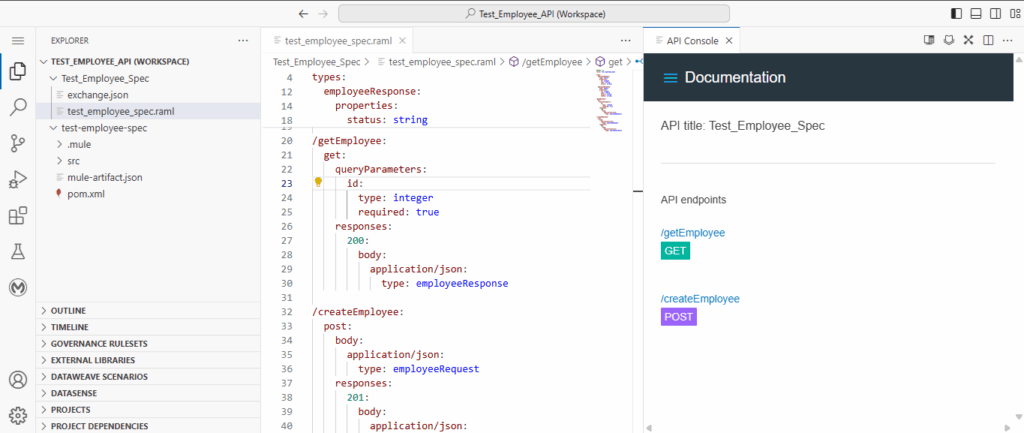

1. API Development

Design APIs using RAML or OpenAPI specifications. Test and integrate them seamlessly into your workflows.

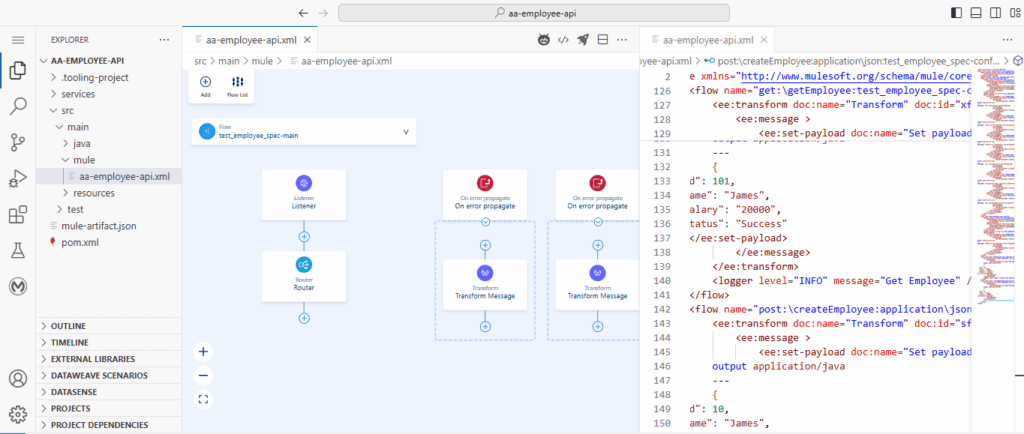

2. Integration Flow Development

Build complex data flows with MuleSoft connectors and DataWeave transformations to connect systems efficiently.

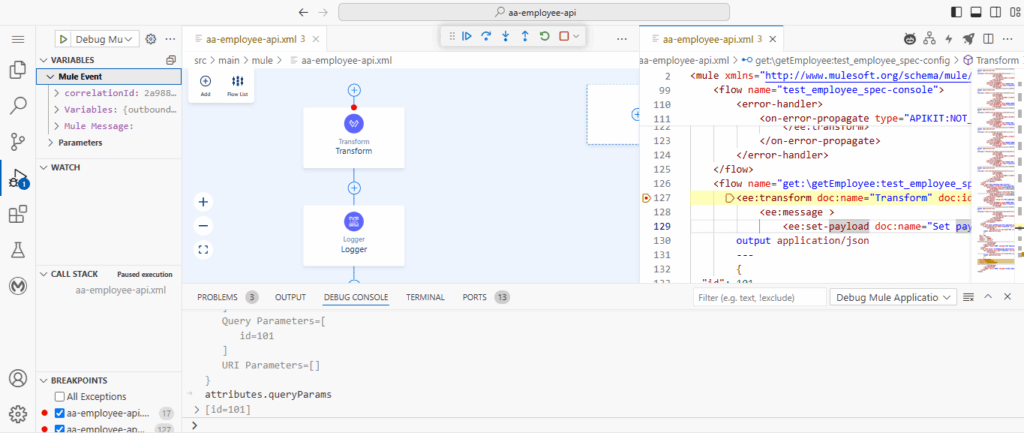

3. Debugging and Testing

Test the integration directly in the cloud to ensure everything works seamlessly.

Conclusion

Anypoint Code Builder makes API and integration development easier and faster. It removes the need for complex setup by working in the cloud. Developers can focus more on building solutions and less on technical issues. Overall, it’s a smart and efficient tool for modern integration needs.

For strategic guidance and expertise in MuleSoft applications, connect with the team at Apps Associates

References

https://docs.mulesoft.com/anypoint-code-builder/
https://docs.mulesoft.com/anypoint-code-builder/tutorials
